Faith Electric 15/20A 125V,NEMA 5-15R, 2P, 3W, Narrow Body Single Receptacle, SSRE-12
- Made of Polycarbonate material to provide the durability, flexibility, and resilience needed to withstand impacts and heavy force.
- Shallow body design fits standard junction boxes. Side terminal wiring (copper only). Break-off plaster ears. Grounding screw.
- Suitable for dwelling areas such as kitchens. Intended for individual branch circuit appliances such as refrigerators.
- Meets UL498 Safety Standards, meets NEC and CEC requirements CSA C22.2 certification.
20A Commercial-Grade Single Receptacle

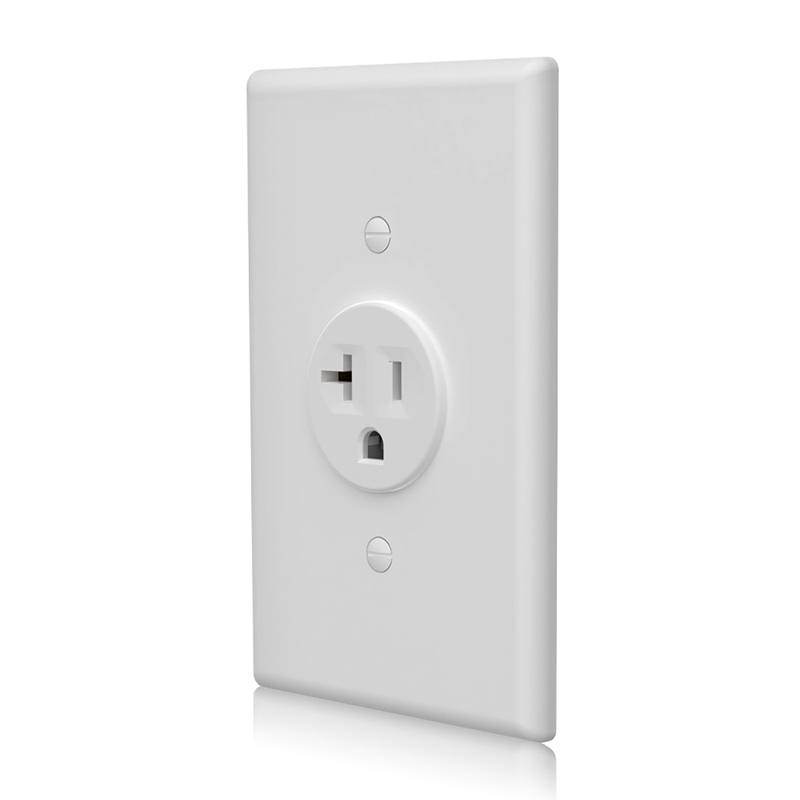

Faith SSRE-12 commercial-grade single receptacle outlets are suitable for commercial and residential use. This single electrical outlets are ideal for individual application devices and appliances such as refrigerators, washing machines, wine fridges and more. These home appliance outlets come with matching white wall plates made of high-quality material and built to last. The shallow body design fits standard junction boxes with side terminal wiring. Intended for individual branch application devices and appliances such as refrigerators. Outlets are clearly marked with the specifications of compliance with UL on the front of the outlet, providing quick and easy access for inspections. Made of high-quality material and build to last.20A 125V. 5-20R, 2-Pole, 3-Wire Grounding, UL94, V2 Rating, UL Listed Use with FAITH wall plates for the best fit and color match.
Faith 20A 125-Volt Single Receptacle SSRE-12 Data Sheet
| Product Name | 20A Single Receptacle |
| Brand | Faith |
| Application | Residential and Commercial Grade |
| Model No. | SSRE-12 |
| Color | White, Black, Ivory and Almond |
| Material | Polycarbonate (PC) |
| Dimensions | 4.2 x 1.38 x 1.06 inches |
| Place of Origin | Guangdong, China |
| Power Rating | 15A, 125 Volt AC |
| Rated Frequency | 60Hz |
| NEMA Rating | 5-20R |
| Flame Rating | UL 94V-2 |
| Wiring Type | side wire |
| Standard | UL & cUL Listed |
Faith 20A 125-Volt Single Receptacle SSRE-12 Applications
- Residential Application: Kitchen,Bathroom
- Commercial Application: Hotel, Office Building
- Hospital Application: Operating Theatre,Intensive Care Unit
Get Free Quote of Faith 20A 125-Volt Single Receptacle SSRE-12
Original factory with over 28 years of trusted experience serving contractors, we stand behind the full-line electrical wiring devices. We’re here to assist you with any project you are looking to complete.
