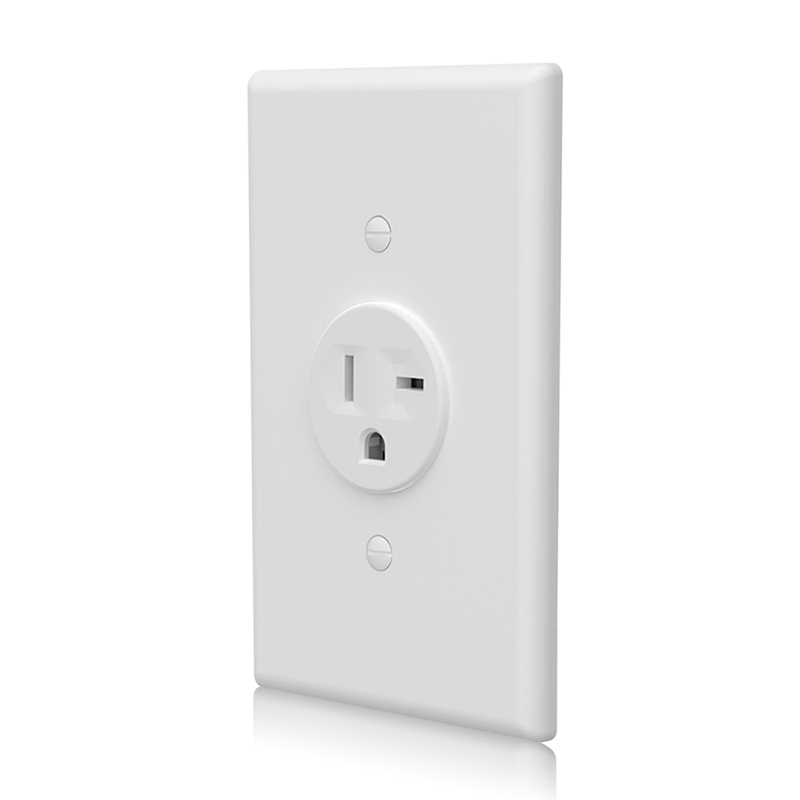

Front and side of SSRE-15 20A 125V Single Receptacle with Wall Plate

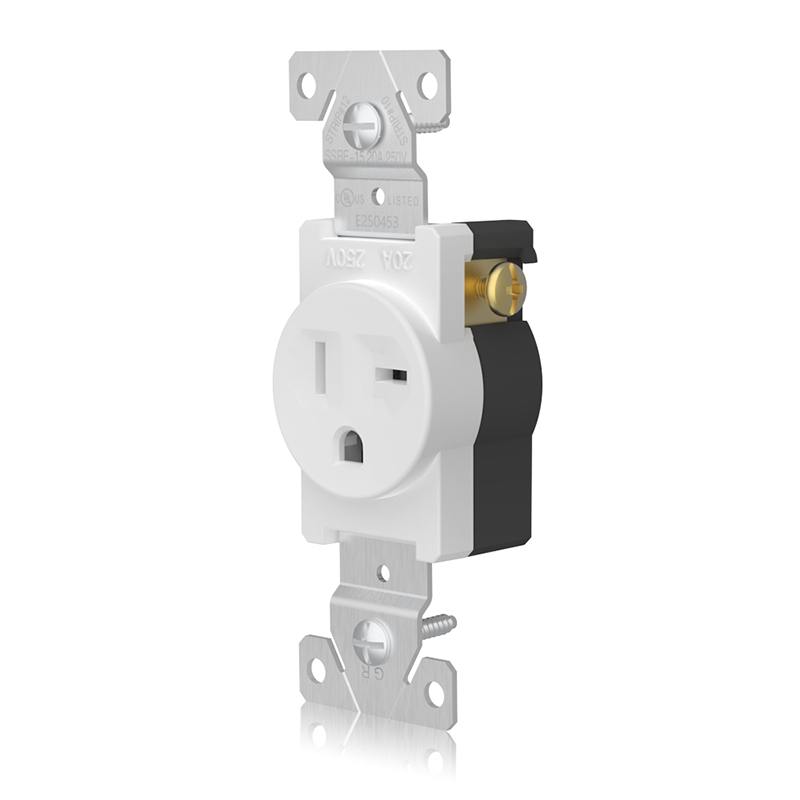

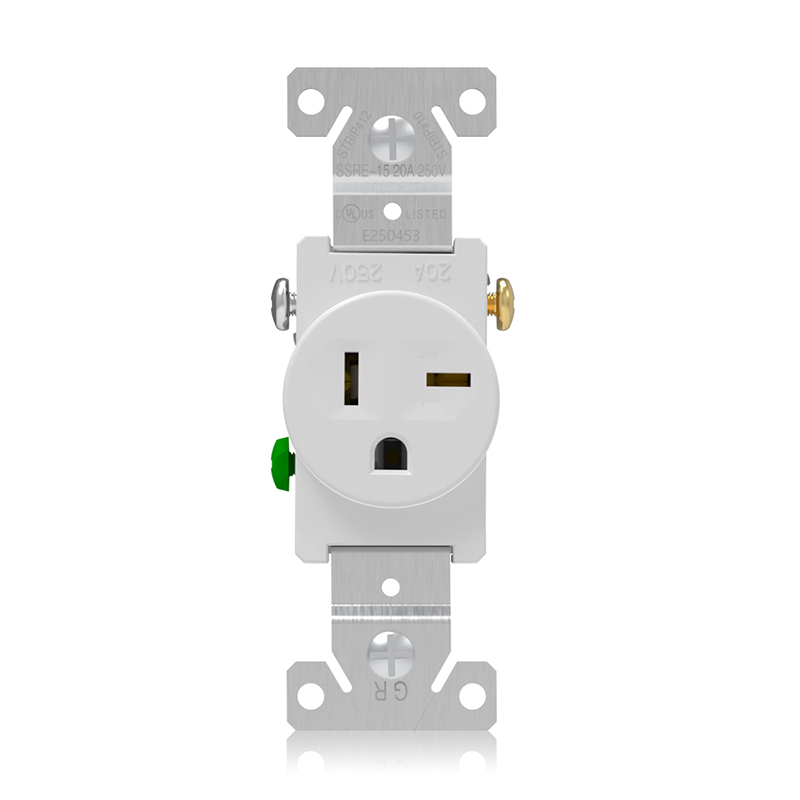

Front and side of SSRE-15 20A 125V Single Receptacle
Front and side of SSRE-15 20A 125V Single Receptacle with Wall Plate

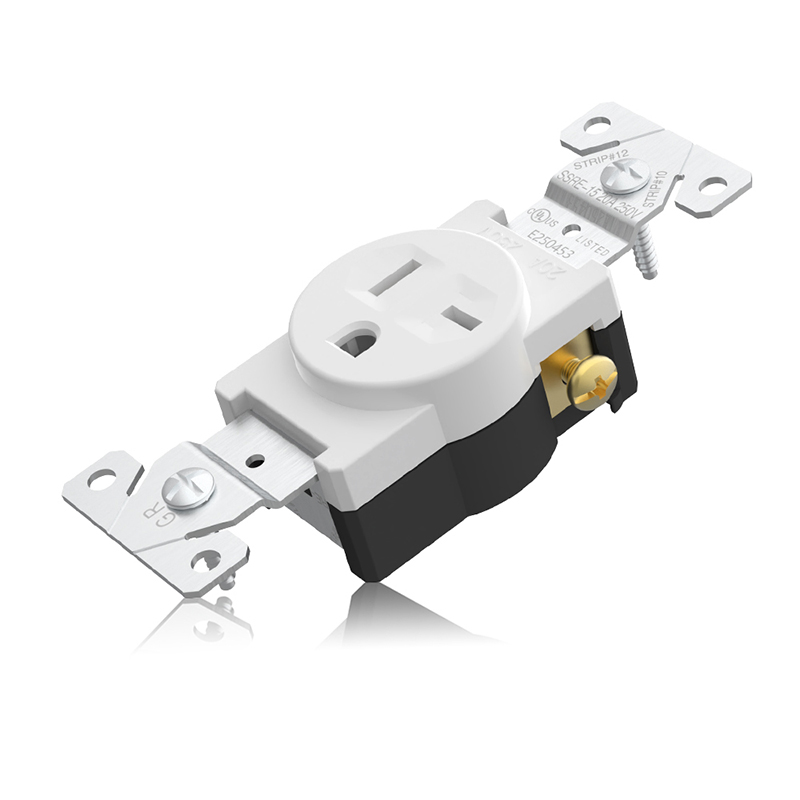

Overhead SSRE-15 20A 125V Single Receptacle with all details

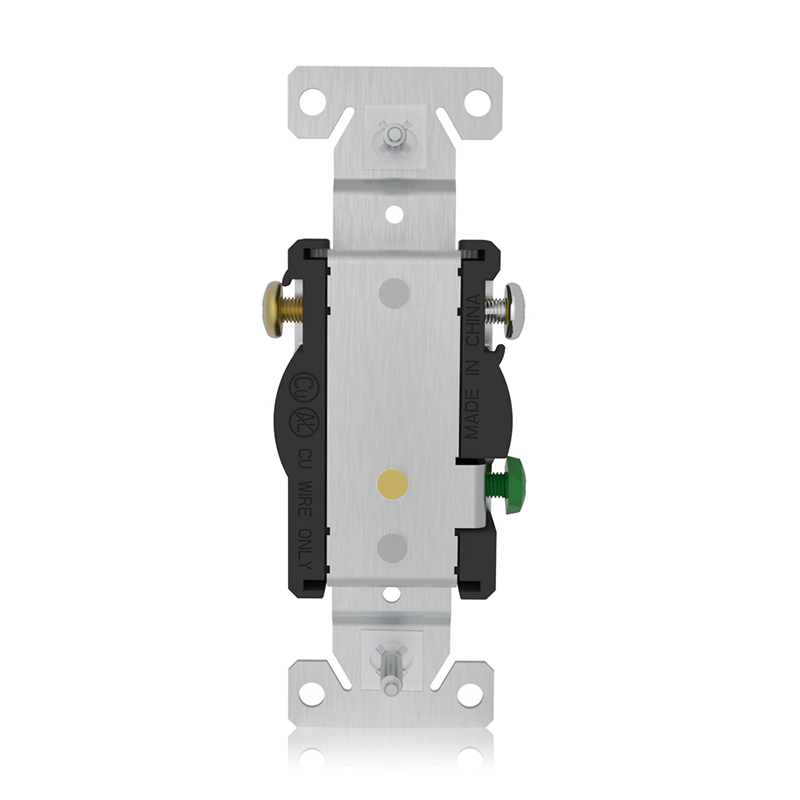

Back side of SSRE-15 20A 125V Single Receptacle
Front close-up of SSRE-15 20A 125V Single Receptacle with Wall Plate
Front and side of SSRE-15 20A 125V Single Receptacle with Wall Plate
Front and side of SSRE-15 20A 125V Single Receptacle
Front and side of SSRE-15 20A 125V Single Receptacle with Wall Plate
Overhead SSRE-15 20A 125V Single Receptacle with all details
Back side of SSRE-15 20A 125V Single Receptacle

Faith Electric Commercial Grade Straight Blade Single Receptacles With 20-Amp, 125-Volt 6-20-NEMA Rating, SSRE-15

  • Made of Polycarbonate material to provide the durability, flexibility, and resilience needed to withstand impacts and heavy force.
  • Shallow body design fits standard junction boxes. Side terminal wiring (copper only). Break-off plaster ears. Grounding screw.
  • Suitable for dwelling areas such as kitchens. Intended for individual branch circuit appliances such as refrigerators.
  • Meets UL498 Safety Standards, meets NEC and CEC requirements CSA C22.2 certification.
Products Categories
Get A Free Quote
Contact Form Demo (#3)

20A Commercial-Grade Single Receptacle

The 20A/125V Commercial-Grade Tamper-Resistant Single Receptacle Outlet is designed to provide safe and reliable electrical connections for your home or office. This electrical outlet features tamper-resistant shutters that prevent the insertion of foreign objects. It offers an added layer of safety, especially in homes with young children. The shutters only open when equal pressure is applied simultaneously to both slots, ensuring that plugs can be inserted easily while reducing the risk of accidental electrical shock. Our 20-amp tamper-resistant outlet is constructed to meet rigorous UL and CUL safety standards so you get high performance and reliability. This wall outlet is rated for 125 volts, making it suitable for a wide range of electrical devices and applications. You get a robust piece of electrical equipment for powering household appliances, lighting, or electronic devices. This power outlet provides a stable and consistent power source. The outlet receptacles are designed for easy installation, fitting standard electrical boxes, and are set up for side-wiring capability. This makes it ideal for both DIY enthusiasts and professional electricians doing renovations or new construction. The sleek finish complements any interior decor, providing a clean and modern look that blends seamlessly into any room. They are perfect for use in living rooms, bedrooms, kitchens, and offices, offering a versatile and safe solution for your electrical needs.

Faith 20A 125-Volt Single Receptacle SSRE-15 Data Sheet

Product Name 20A Single Receptacle
Brand Faith
Application Residential and Commercial Grade
Model No.  SSRE-15
Color White, Black, Ivory and Almond
Material Polycarbonate (PC)
Dimensions 4.181 x 1.319 x 1.03 inches
Place of Origin Guangdong, China
Power Rating 20A, 125 Volt AC
Rated Frequency 60Hz
NEMA Rating 6-20R
Flame Rating UL 94V-2
Wiring Type side wire
Standard UL & cUL Listed

Faith 20A 125-Volt Single Receptacle SSRE-15 Applications

  • Residential Application: Kitchen,Bathroom
  • Commercial Application: Hotel, Office Building
  • Hospital Application: Operating Theatre,Intensive Care Unit

Get Free Quote of Faith 20A 125-Volt Single Receptacle SSRE-15

Original factory with over 28 years of trusted experience serving contractors, we stand behind the full-line electrical wiring devices. We’re here to assist you with any project you are looking to complete.
