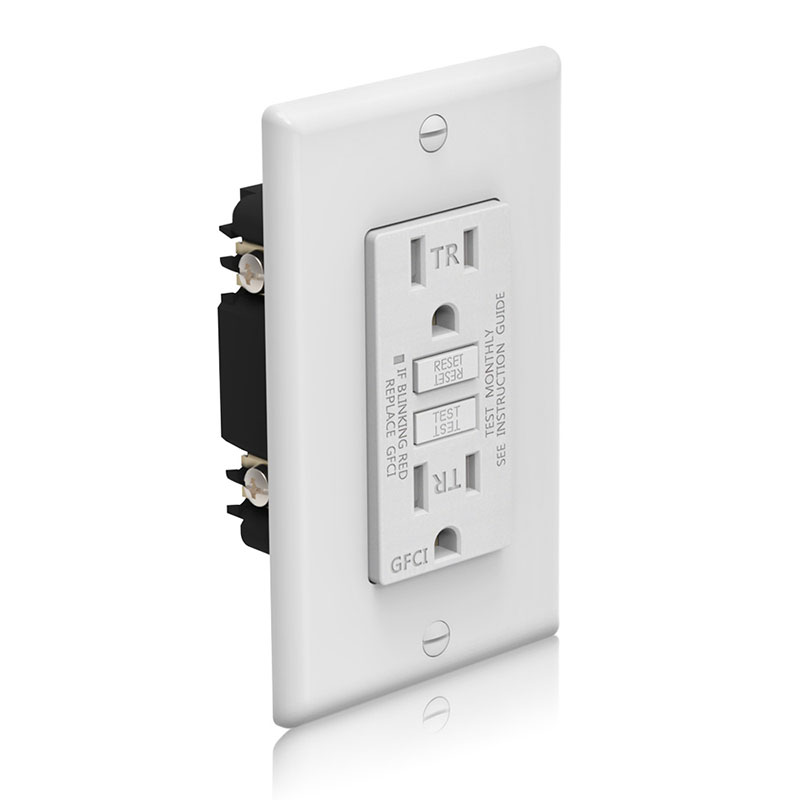

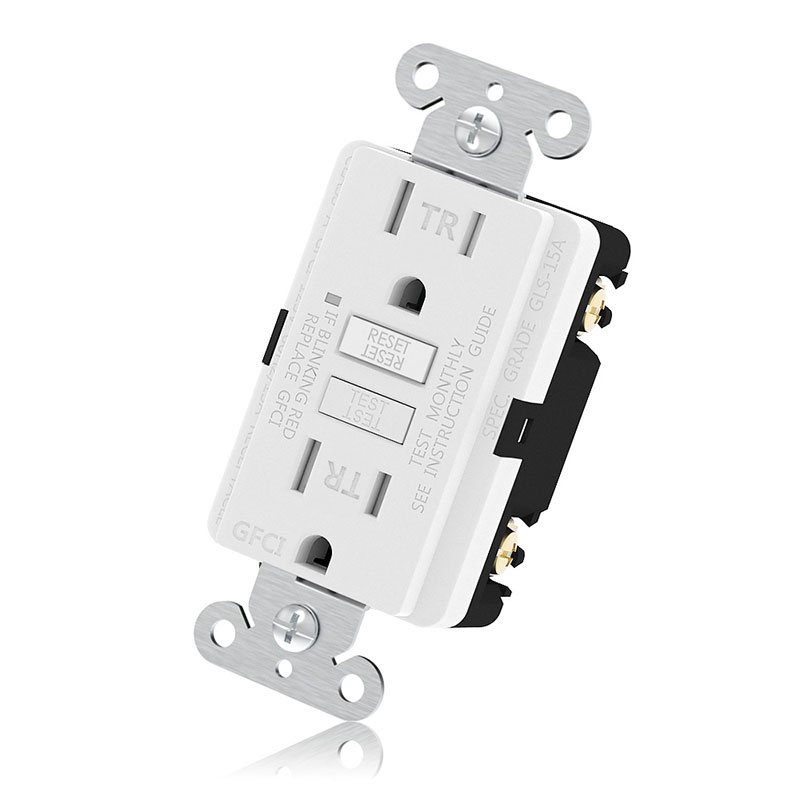

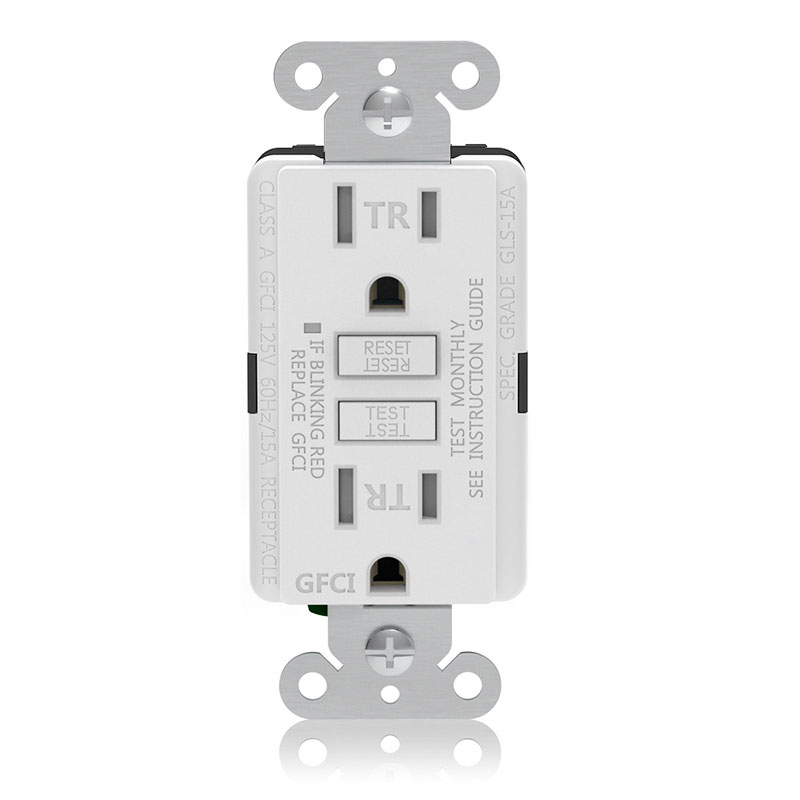

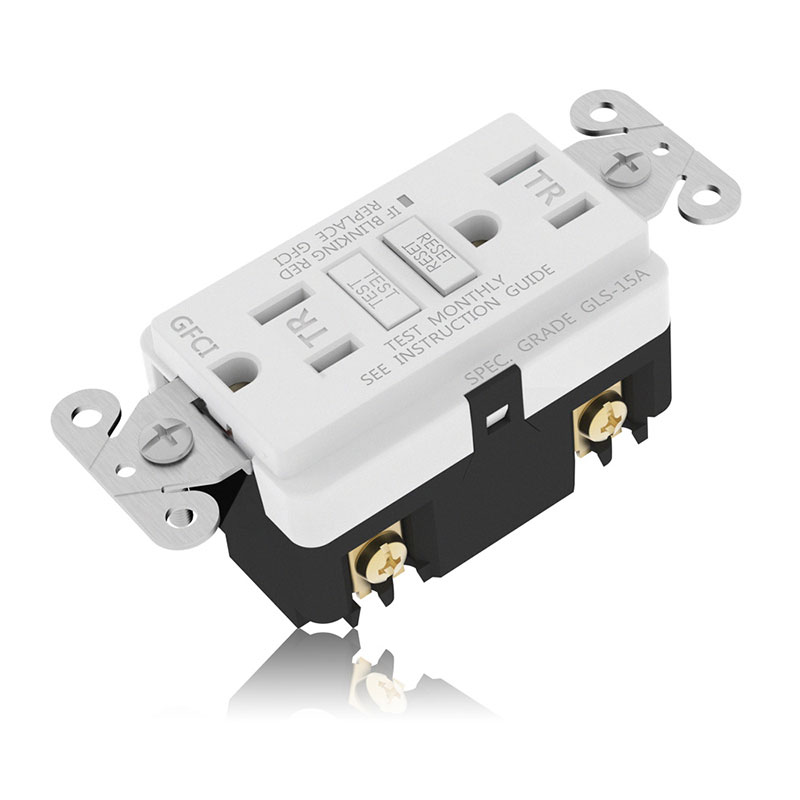

Faith Electric ETL/UL Listed Self-Test GFCI Outlets GLS-15A Tamper-Resistant
The Faith GLS-15ATR self-testing ground fault circuit interrupter outlet provides continuous protection from ground faults, disconnecting power in 1/40 of a second if a dangerous condition is detected. Once connected to power, this GFCI receptacle automatically self-tests every 2-1/2 hours. The green indicator LED light turns off if the outlet is not receiving power, is broken, or if it is at end-of-life.
- Tamper-resistant: Providing an extra layer of safety in households with children, tamper-resistant shutter safety mechanism blocks access to power unless a plug is inserted.
- Auto-Test 15 Amp GFCI Outlet: To ensure continuous protection against ground faults, the GFCI outlet conducts automatic self-tests.
- Easy Installation: Slimmer, modern design for easier and quicker installation in electrical boxes. Terminals allow for easy wiring options.
- High Quality: Meets or exceeds UL943 2015 standards. Compliant with National Electric Code (NEC) requirements. UL/ETL Listed.
- LED Indicator Light: Green LED indicator light shows that the device is functioning correctly.
Products Categories
Get A Free Quote
GLS-15ATR, Faith UL Listed 15A Electrical High Quality Duplex GFCI Tamper Resistant Outlet
- Conducts the automatic self-test within two hours, ensuring it’s always ready to protect. The indicator light (red LED) flash in red color to signal it should be replacedwhen the device fail to pass the test. • The tamper-resistant shutter safety mechanism meets or exceeds NEC 406.12 requirements.
- Self-grounding for easy installation: Self-grounded with brass contact to ensure device is grounded directly to metal boxes, eliminating the need to bond the device with the ground screw.
- Prevents line-load reversal miswire: no power to the face or downstream receptacles if wired incorrectly.

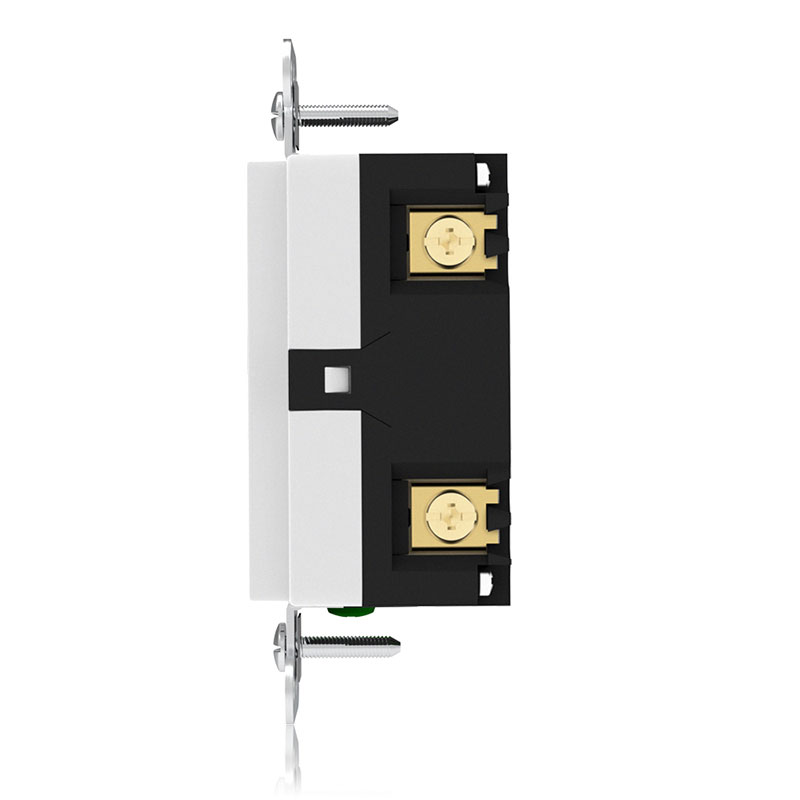

- Shallow design offers maximum wiring room.
- Protects against shock caused by ground-fault occurrences unlike breaker alternatives, GFCI outlets make it easier to fix trips with a convenient reset button on the outlet.
- Automatic end of life detection: provides improved end of life (EOL) detection by rejecting false EOL information.
Faith Patented GLS-15ATR GFCI Outlets Data Sheet
| Product Name | 15 Amp Tamper-Resistant GFCI outlet |
| Brand | Faith |
| Model No. | GLS-15ATR |
| Type | Tamper-Resistant |
| Application | Residential and Commercial Grade |
| Color | White, Black, Ivory and Almond |
| Material | Polycarbonate (PC) |
| Dimensions | 2.76 x 1.55 x 4.56 inches |
| Place of Origin | Guangdong, China |
| Power Rating | 15A, 125 Volt AC |
| Rated Frequency | 60Hz |
| NEMA Rating | 5-15R |
| Flame Rating | UL 94V-2 |
| Temperature rating | -95 ℉ to 150.8 ℉ |
| Wiring Type | back & side wire |
| Standard | Meet UL/cUL943,UL498 |
Faith Patented GLS-15ATR GFCI Outlets Applications
- Residential Application: Kitchen,Bathroom
- Commercial Application: Hotel, Office Building
- Hospital Application: Operating Theatre,Intensive Care Unit
