Faith Electric ETL/UL Listed Self-Test GFCI Outlets GLS-15A Tamper/Weather-Resistant
This Tamper/Weather Resistant GFCI receptacle is a 15 Amp self-test GFCI that prevent the electrical current and identify leaks in the circuit. The GFCI trips the circuit and stops the flow of electricity once If leaks are identified. This TRWR 15A GFCI receptacle is suitable for installing in a variety of facilities include Kitchen, Bathroom, Wet Bar, Laundry Room, Garage, Unfinished Basement, Crawl Space, Around Spa/Hot Tubs, Outdoor kitchens/grilling area, Sprinkler Systems, Swimming Pool and many other placements for indoor and outdoor appliances.
- Weather-resistant GFCI outlets include brass and nickel plated contacts and other metal parts that resist corrosion caused by moisture.
- Auto-Test 15 Amp GFCI Outlet: To ensure continuous protection against ground faults, the GFCI outlet conducts automatic self-tests.
- Easy Installation: Slimmer, modern design for easier and quicker installation in electrical boxes. Terminals allow for easy wiring options.
- High Quality: Meets or exceeds UL943 2015 standards. Compliant with National Electric Code (NEC) requirements. UL/ETL Listed.
- LED Indicator Light: Green LED indicator light shows that the device is functioning correctly.

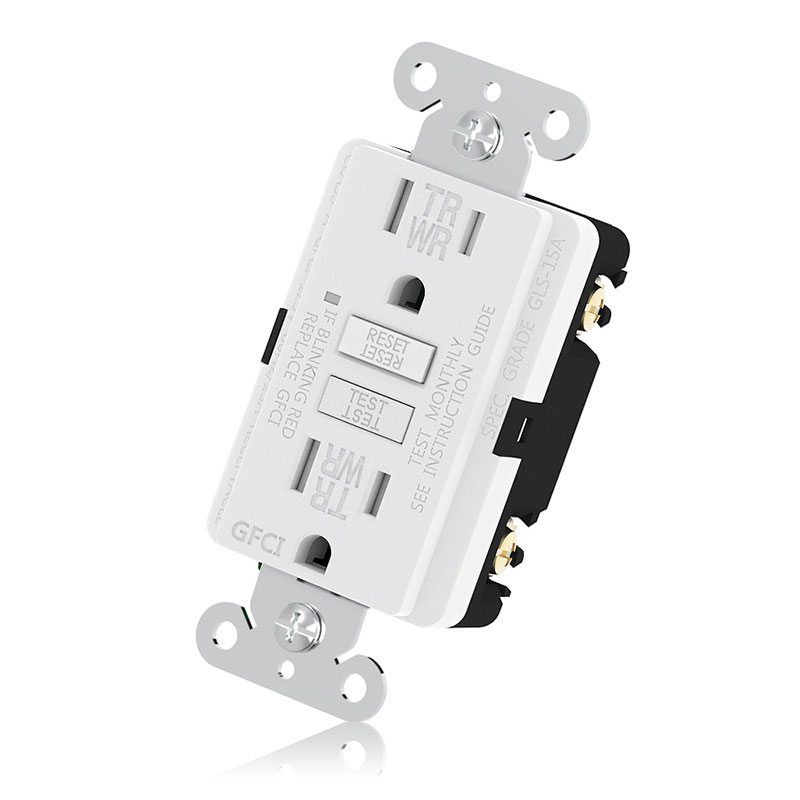

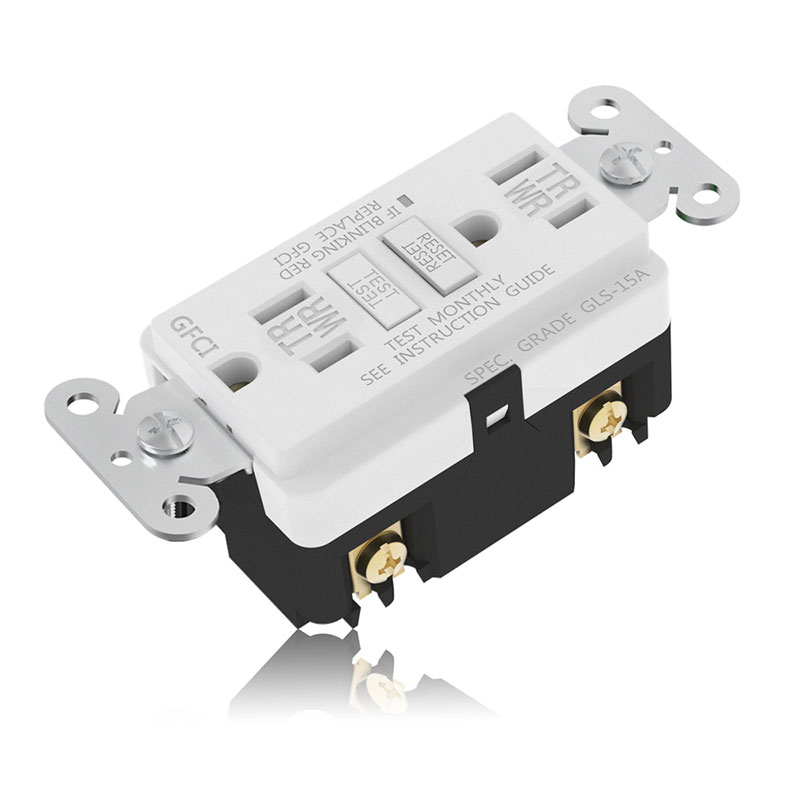

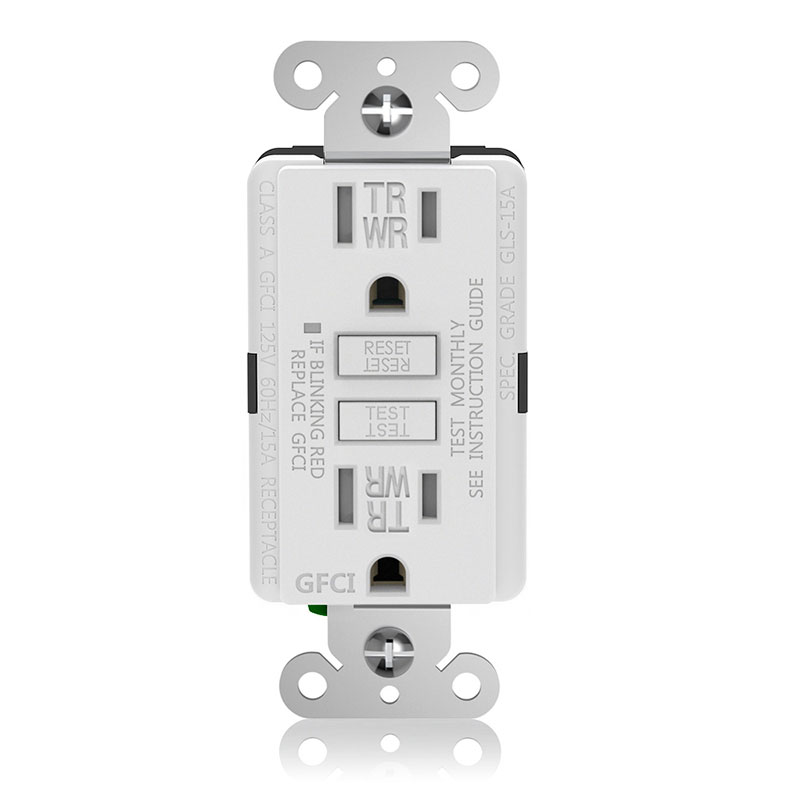

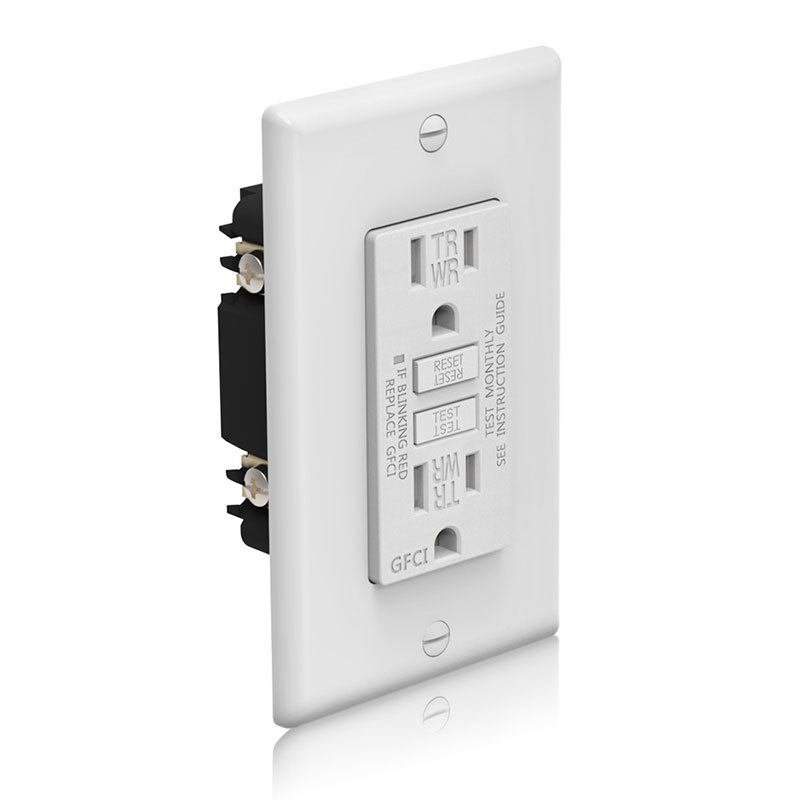

GLS-15ATRWR, Faith 15 Amp 125 V Self-Test Tamper And Weather-Resistant Duplex Electrical GFCI Outlet With Wall Plate
- Conducts the automatic self-test within two hours, ensuring it’s always ready to protect. The indicator light (red LED) flash in red color to signal it should be replacedwhen the device fail to pass the test.
- The tamper-resistant shutter safety mechanism meets or exceeds NEC 406.12 requirements. Weather-resistant GFCI outlets include brass and nickel plated contacts and other metal parts that resist corrosion caused by moisture.

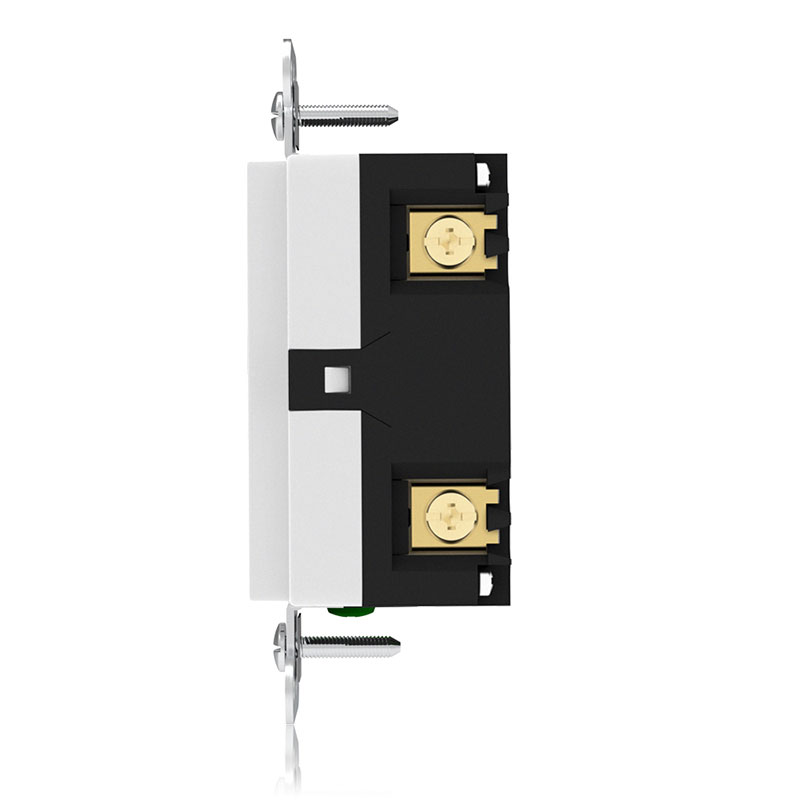

- Self-grounding for easy installation: Self-grounded with brass contact to ensure device is grounded directly to metal boxes, eliminating the need to bond the device with the ground screw.
- Prevents line-load reversal miswire: no power to the face or downstream receptacles if wired incorrectly.
- Shallow design offers maximum wiring room.
- Protects against shock caused by ground-fault occurrences unlike breaker alternatives, GFCI outlets make it easier to fix trips with a convenient reset button on the outlet.
- Automatic end of life detection: provides improved end of life (EOL) detection by rejecting false EOL information.
Faith Patented GLS-15ATR GFCI Outlets Data Sheet
| Product Name | 15 Amp Tamper-Resistant GFCI outlet |
| Brand | Faith |
| Model No. | GLS-15ATR |
| Type | Tamper-Resistant |
| Application | Residential and Commercial Grade |
| Color | White, Black, Ivory and Almond |
| Material | Polycarbonate (PC) |
| Dimensions | 2.76 x 1.55 x 4.56 inches |
| Place of Origin | Guangdong, China |
| Power Rating | 15A, 125 Volt AC |
| Rated Frequency | 60Hz |
| NEMA Rating | 5-15R |
| Flame Rating | UL 94V-2 |
| Temperature rating | -95 ℉ to 150.8 ℉ |
| Wiring Type | back & side wire |
| Standard | Meet UL/cUL943,UL498 |
Faith Patented GLS-15ATR GFCI Outlets Applications
- Residential Application: Kitchen,Bathroom
- Commercial Application: Hotel, Office Building
- Hospital Application: Operating Theatre,Intensive Care Unit
Get Free Quote of Faith GFCI Outlets GLS-15ATR
Original factory with over 28 years of trusted experience serving contractors, we stand behind the full-line electrical wiring devices. We’re here to assist you with any project you are looking to complete.
