Front close-up of SSRE-1 15A Duplex Receptacle with white wall plate

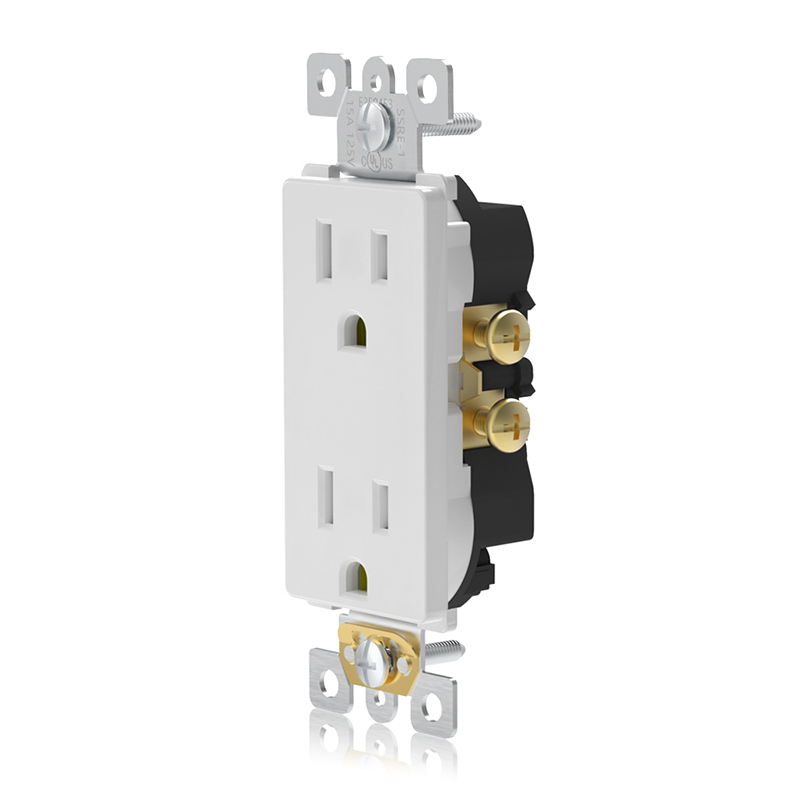

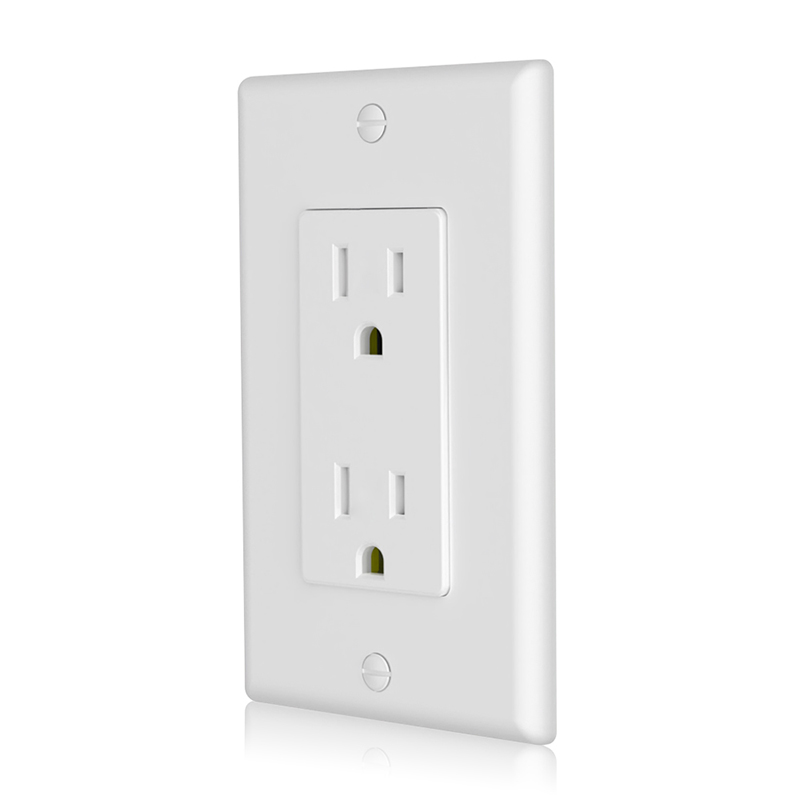

Front and side of SSRE-1 15A Duplex Receptacle with white wall plate

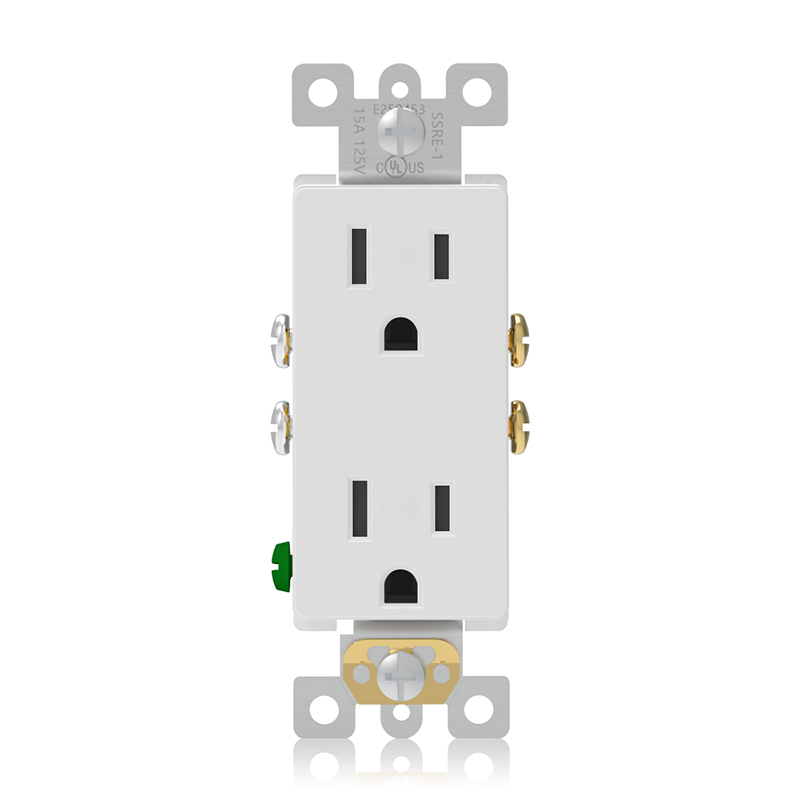

Front close-up of SSRE-1 15A Duplex Receptacle

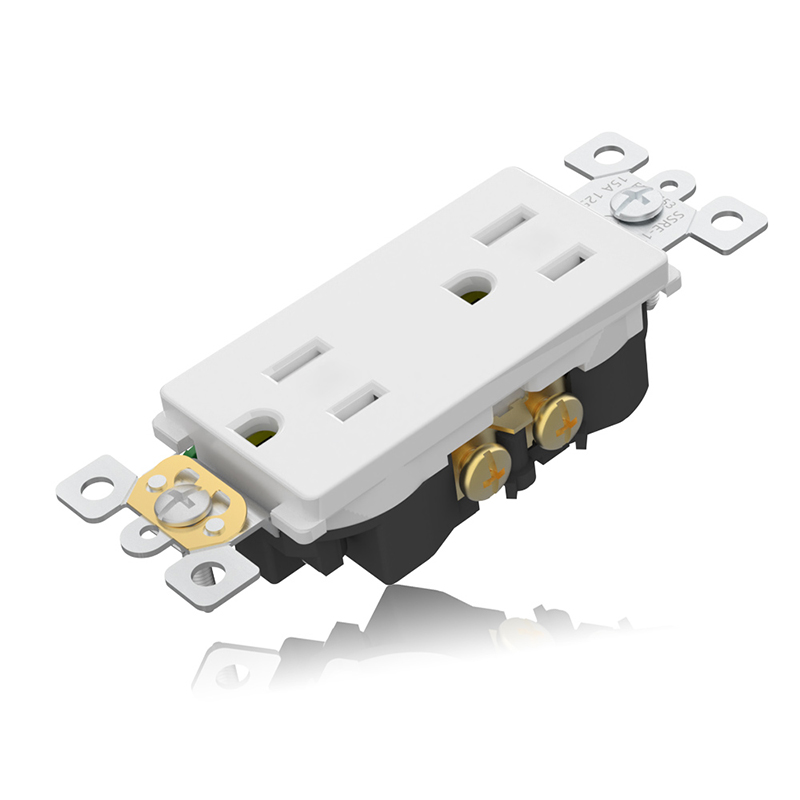

Overhead SSRE-1 15A Duplex Receptacle with all details

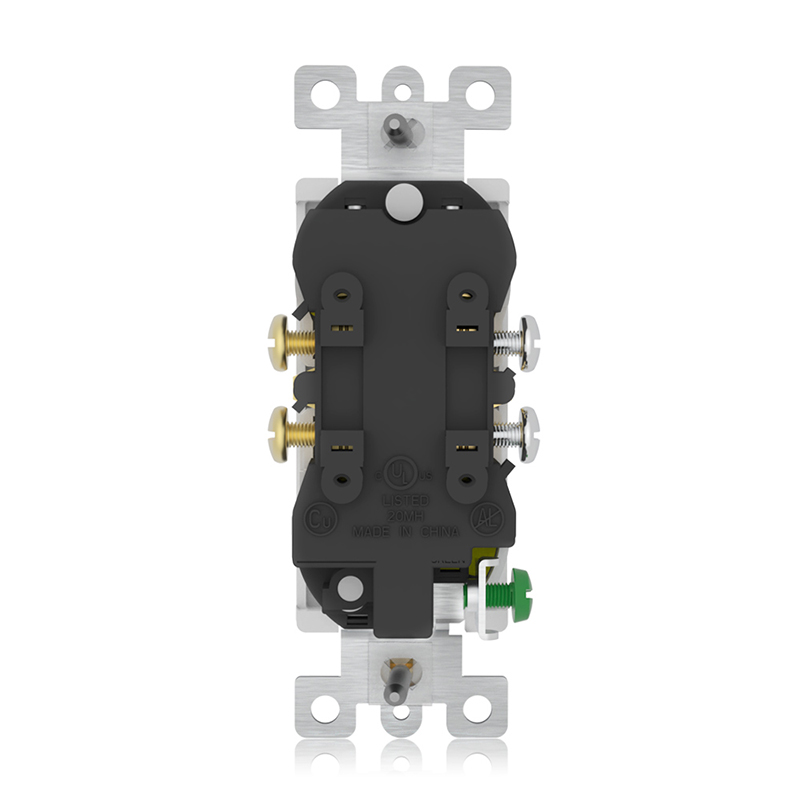

Back side of SSRE-1 15A Duplex Receptacle
Front close-up of SSRE-1 15A Duplex Receptacle with white wall plate
Front and side of SSRE-1 15A Duplex Receptacle with white wall plate
Front close-up of SSRE-1 15A Duplex Receptacle
Overhead SSRE-1 15A Duplex Receptacle with all details
Back side of SSRE-1 15A Duplex Receptacle

Faith Electric UL Listed 15 Amp 125V Self-Grounding Decorator Duplex Receptacle

DIY Repair or Replace: This grounding duplex receptacle is the perfect solution to repairs or replacements around home. Whether you’re a general contractor or a DIYer, this unit will make upgrading your bedroom, kitchen, office, workshop or other space a breeze。
Easy to install: The wall outlets shallow body design fits easily in standard junction boxes. The electrical receptacles are both back and side wire capable.
Durable construction: Each outlet receptacle is made of high-quality, rugged thermoplastic polycarbonate material to ensure a long service life.

Products Categories
Get A Free Quote
Contact Form Demo (#3)

Non-Tamper Resistant Decorator Outlet

  • The Faith SSRE-1  decorator receptacle is a drop in replacement for residential applications that require 15A decorator outlet receptacle. Easy to install with back or side wire options.
  • Self-grounding for easy installation: Self-grounded with brass contact to ensure device is grounded directly to metal boxes, eliminating the need to bond the device with the ground screw.  Accepts #12 or #14 Stranded or Solid Copper wire.
  •  Made of Polycarbonate material to provide the durability,flexibility, and resilience needed to withstand impacts and heavy force.
  • A sleek, sophisticated and timeless design will compliment and fit seamlessly into any environment, whether it be at the workplace or at home.
  • Washer-type break-off plaster ear for best flush alignment.
  • Large head combination screws for quick wiring.
  • Shallow design for maximum wiring room.
  • Meets UL498 Safety Standards, meets NEC and CEC requirements CSA C22.2 certification.

Faith 15A Decorator Duplex Receptacle SSRE-1 Data Sheet

Product Name 15A decorative duplex Receptacle
Brand Faith
Application Residential and Commercial Grade
Model No.  SSRE-1
Color White, Black, Ivory and Almond
Material Polycarbonate (PC)
Dimensions 1.15 x 3.47inches
Place of Origin Guangdong, China
Power Rating 15A, 125 Volt AC
Rated Frequency 60Hz
NEMA Rating 5-15R
Flame Rating UL 94V-2
Wiring Type side wire & back wire
Standard UL & cUL Listed

Faith 15A Decorator Duplex Receptacle SSRE-1 Applications

  • Residential Application: Kitchen,Bathroom
  • Commercial Application: Hotel, Office Building
  • Hospital Application: Operating Theatre,Intensive Care Unit

Get Free Quote of Faith 15A Duplex Outlets SSRE-1

Original factory with over 28 years of trusted experience serving contractors, we stand behind the full-line electrical wiring devices. We’re here to assist you with any project you are looking to complete.
